At the same time as I put in the HIDs, I also installed a Garmin Zumo660 navigator. This GPS unit is specifically designed for motorcycles and is weatherproof:

Garmin Zumo660

Originally, I had ordered KTM's locking mount for the device but it turns out that it was designed for the previous 550 model and would not fit this one. Luckily, Garmin provided all the RAM mounts necessary for installation:

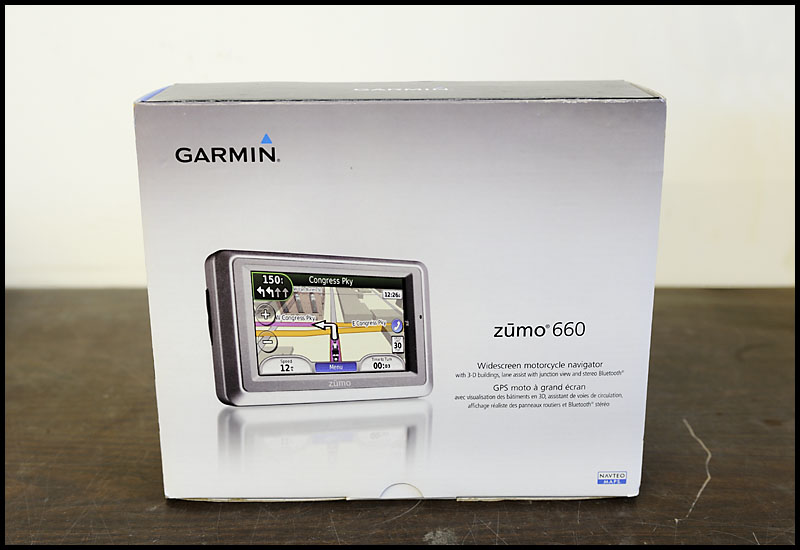

Garmin Zumo660 box contents

The RAM mount will replace the clamp to hold the left side hand guard:

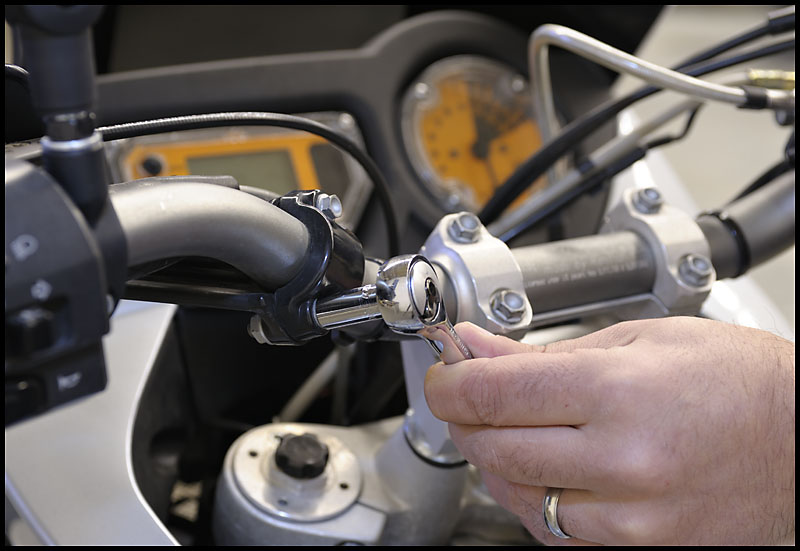

Installing RAM mount for Zumo660

While looking for locations to mount the inverters, I found two pairs of connecters ty-wrapped to the headlamp and guage support frame marked "AUX1" and "AUX2". Well, isn't that handy! I wondered where the output of those fuses led. Turns out AUX1 is steady voltage and AUX2 is ignition switched:

Location of fused AUX outputs

The switched feed will be used to power the GPS. I don't like or trust quick connects so as usual, I cut them off, fed the power wiring for the GPS down to this point and soldered the leads together:

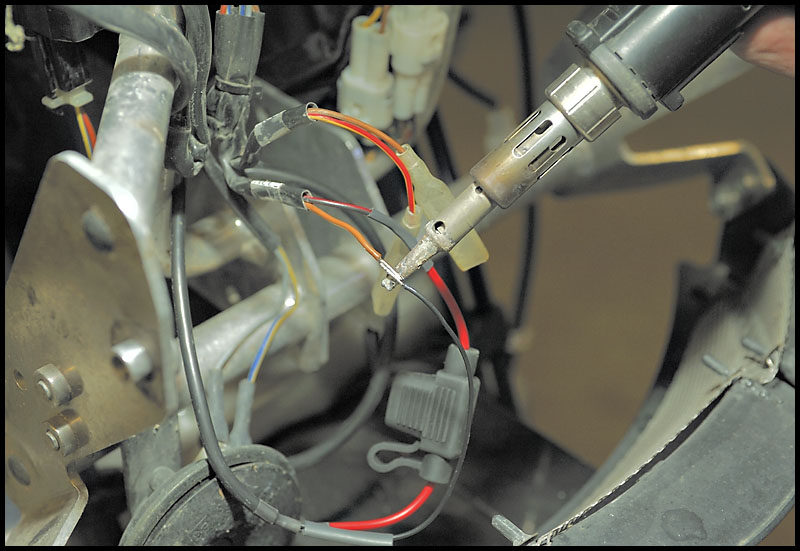

Splicing in GPS power

Lastly, the GPS is mounted:

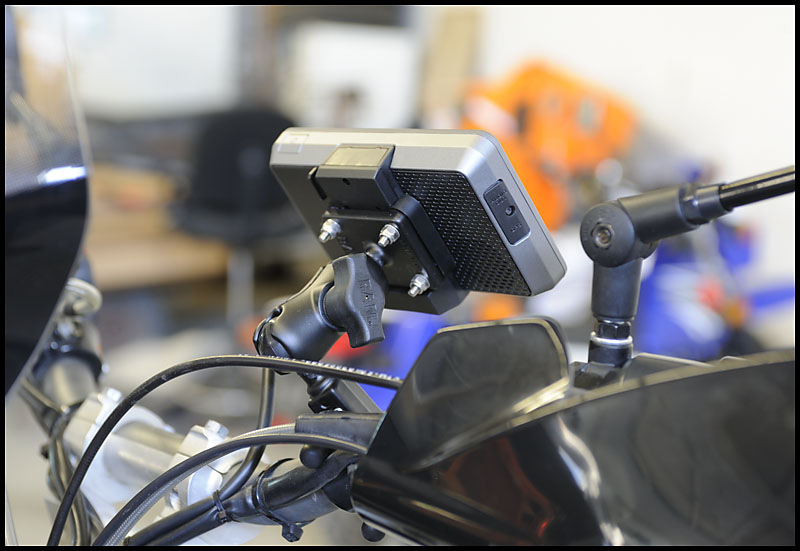

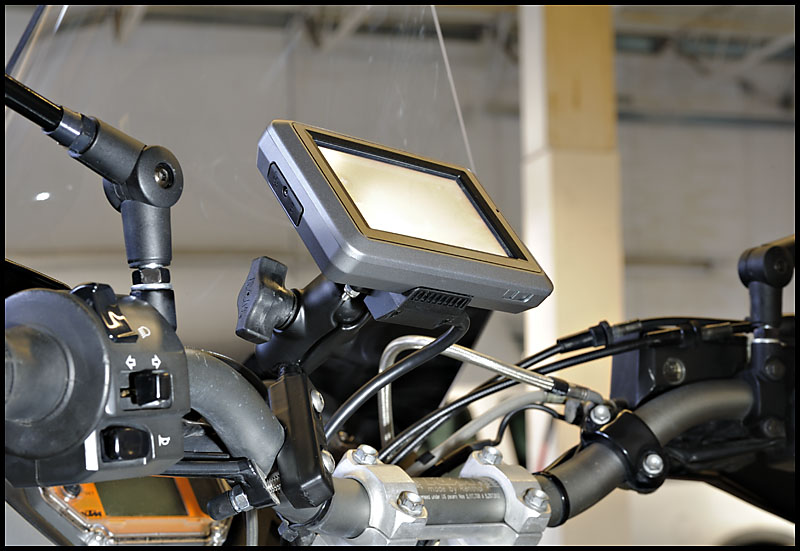

Garmin Zumo660 mounted

Garmin Zumo660 mounted

Garmin Zumo660 mounted

It works as it should switching on and off with the ignition.


It didn't take long before I decided that I didn't like the RAM mount. I was concerned both about it being too easy to steal or perhaps getting knocked loose while riding. So, I checked Touratech and indeed they had the locking mount for the 660:

Touratech Locking Mount for Garmin Zumo 600

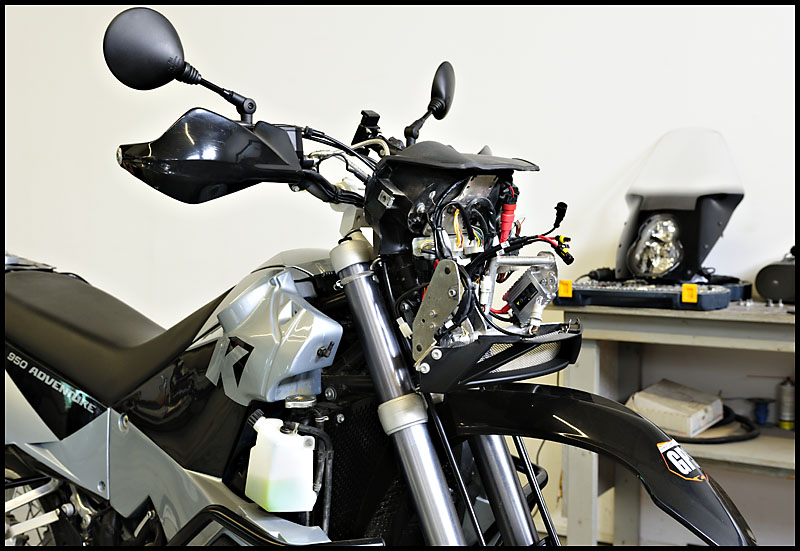

So, once again I had to take the front of the bike apart:

Disassembled - again

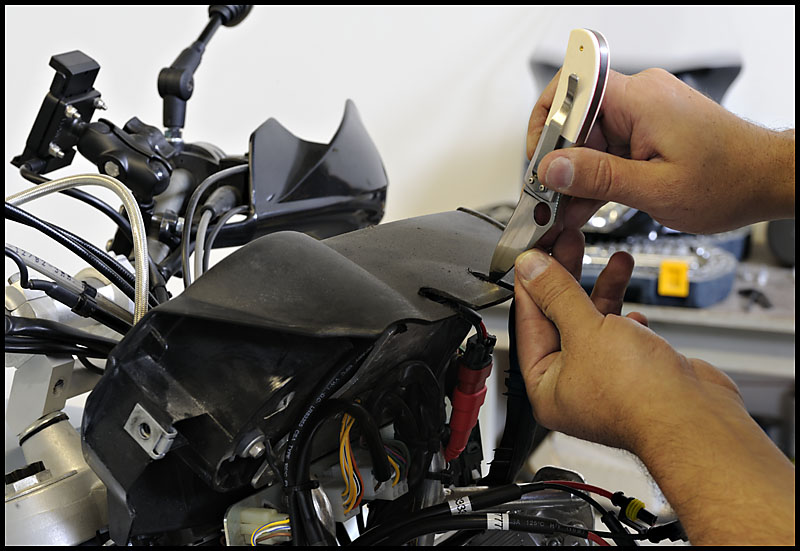

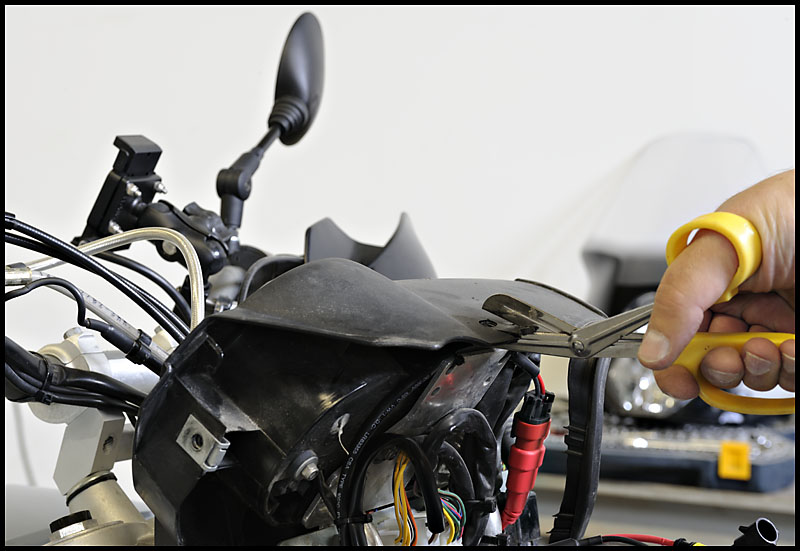

I used a pair of EMT scissors to cut slots into the "dash":

Cutting the Dash of KTM950 Adventure

...and next rounded out the slots with a dremel and smoothed the edges:

Smoothing the Dremeled Edges

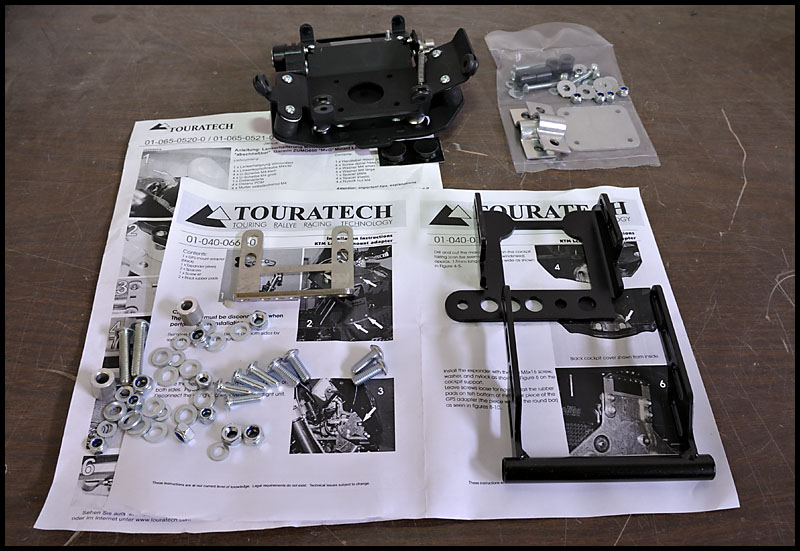

These slots allowed me to install this frame to support the mount:

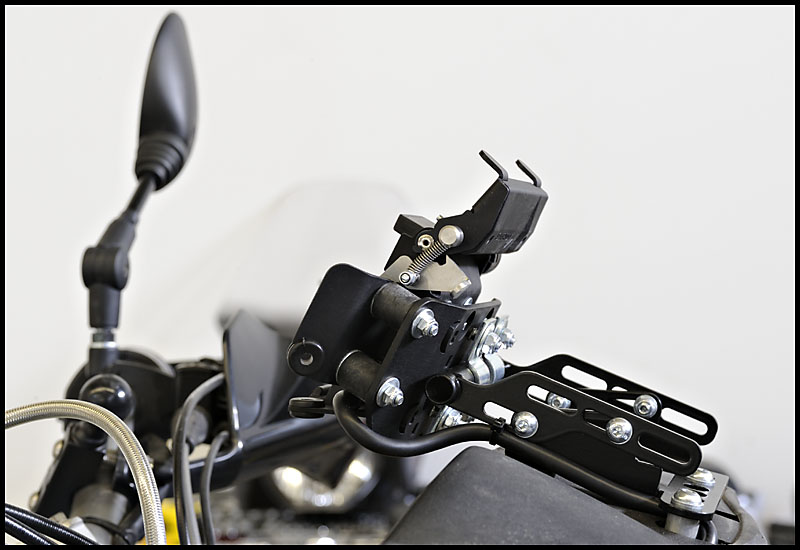

Touratech GPS Mount Frame

...and here is the locking mount:

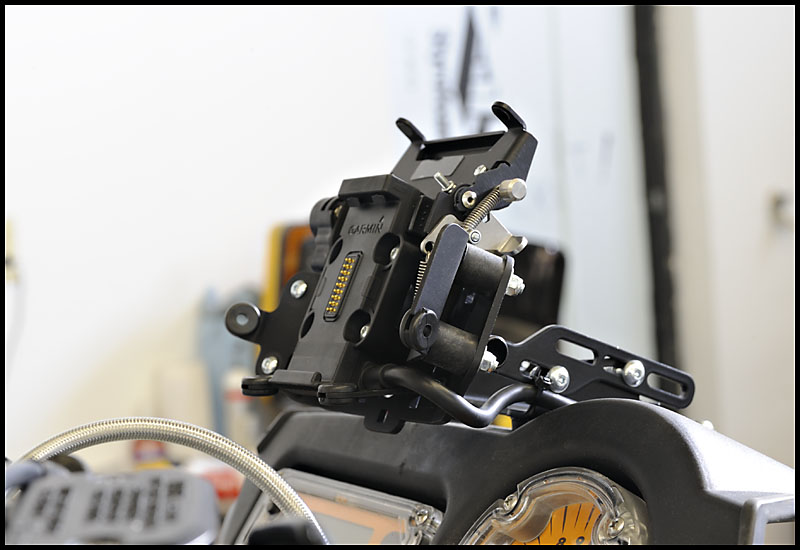

Touratech Locking Mount for Garmin Zumo 660

Touratech Locking Mount for Garmin Zumo 660

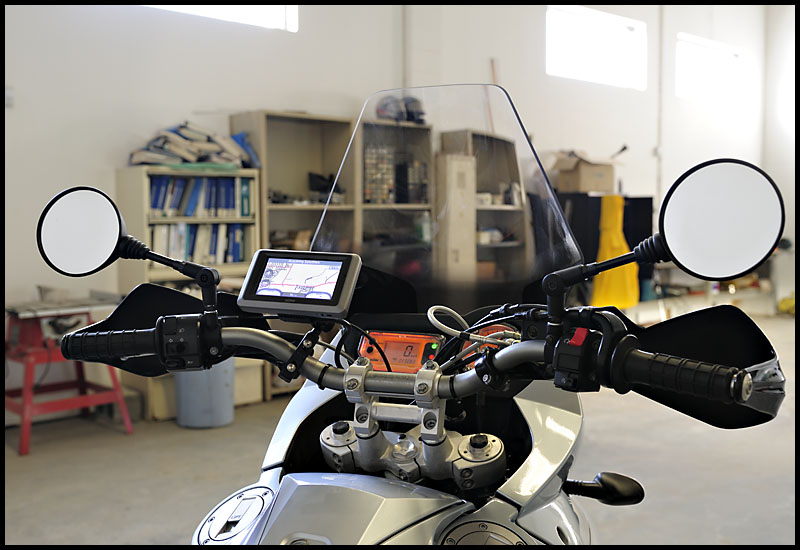

Finally, here is the navigator's new location. I like it much better up here and certainly am confident in not losing it:

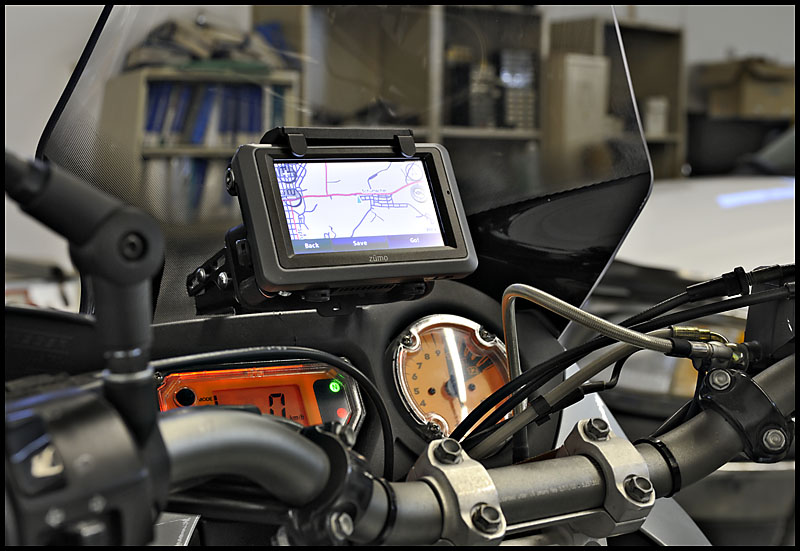

Garmin Zumo 660 in Tourtech Locking Mount
