Next is to get the power wiring done.

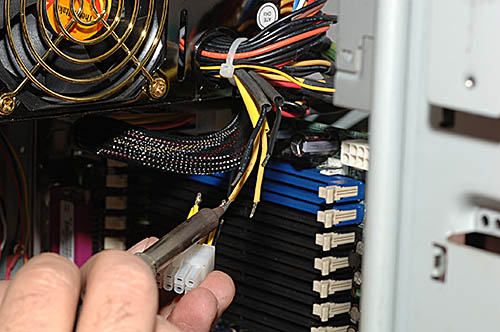

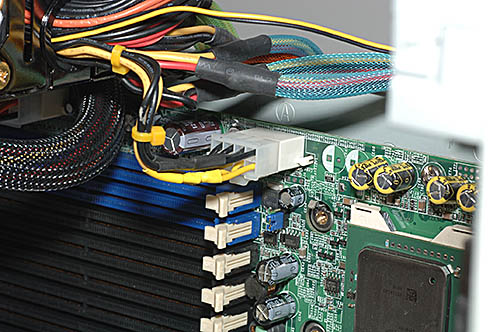

First, I eliminated the adapter and shortened the cable run for the P4 connection:

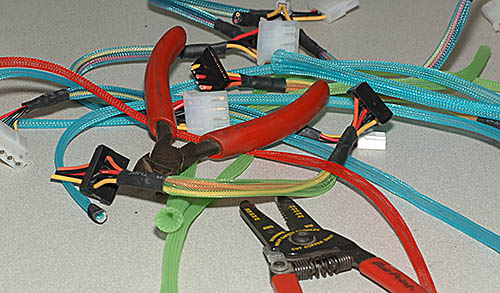

Then cut off the existing connectors and all of this dayglo crap:

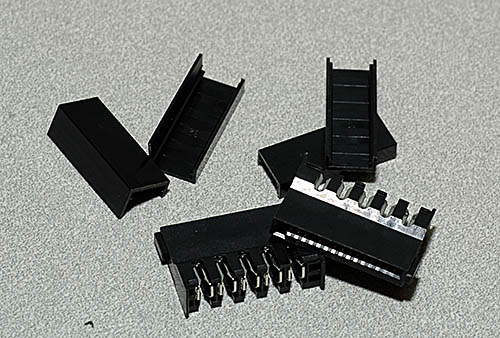

I bought a bag of right angle SATA power connectors from ADPmods.   Great service - had the parts overnight.

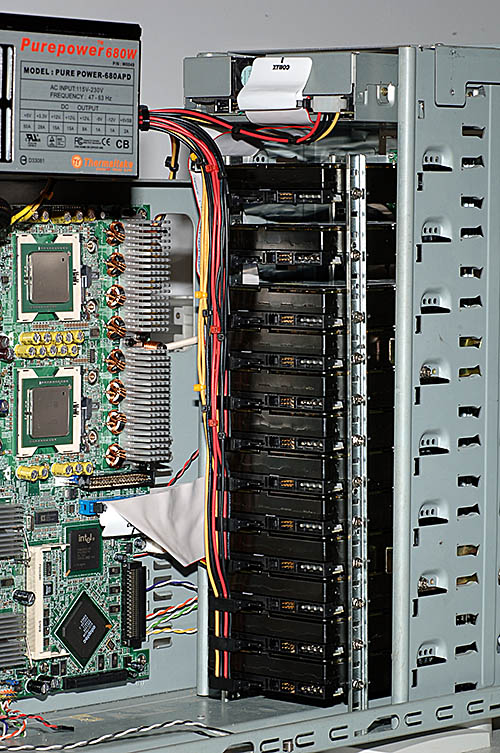

Here is the power buss:

It would seem alot of detail was lost in the compression of that image - click here for lifesize.

And the internals as it stands now:
