Finally, the SATA cabling.   These thin serial cables are certainly much easier to work with than the ribbons!
Unfortunately, they were around 18" longer than really necessary.   Oh well......

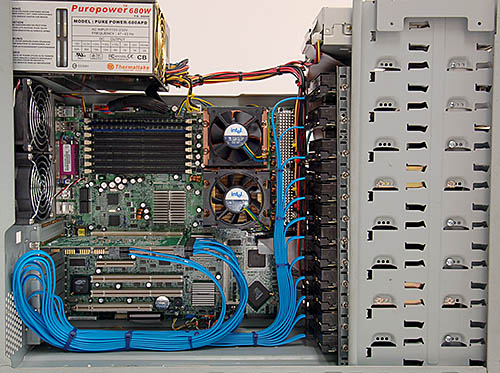

Serial ATA wiring
Click here for detailed view of completed cabling.

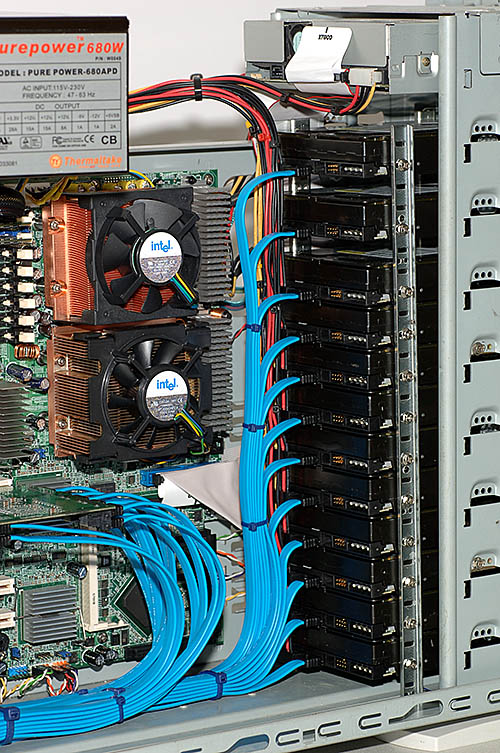

The wired drive tower

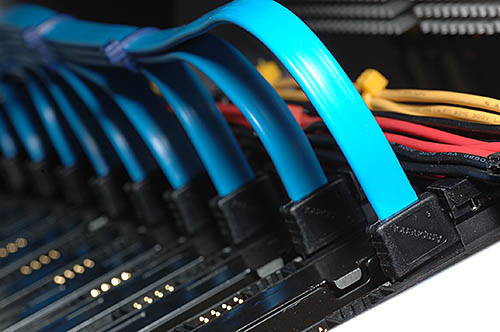

Serial ATA wiring profile

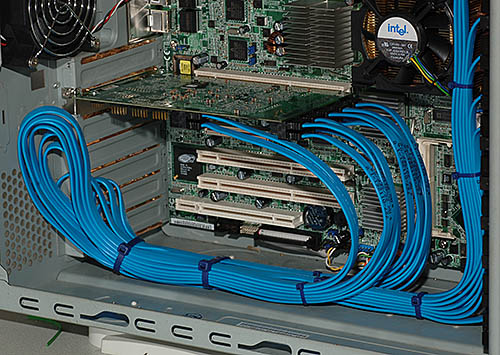

Under the RAID controller

So now we're ready for a test drive....
