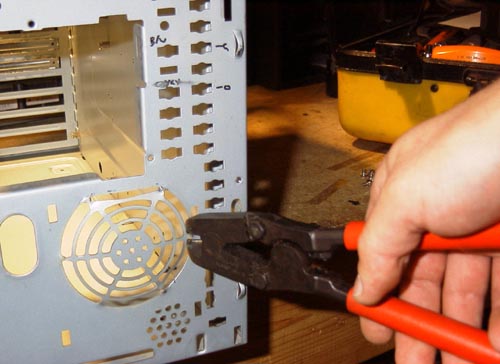

[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] | I figured the huge 120mm intake fan was going to be the biggest job so might as well start there. I had to determine the correct spot to install this big fellow but, there was a finger guard in the way. So step one was to remove the offender.

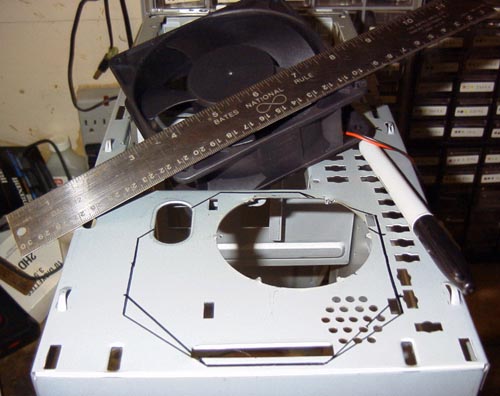

Now I could lay the fan down to determine where it would fit

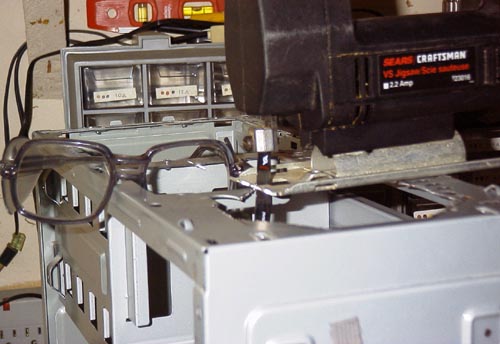

Out with the jigsaw and a hole is made!

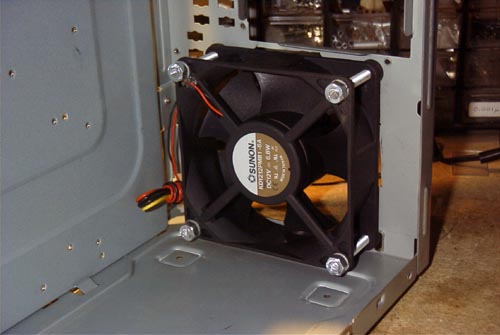

Next it was just a matter of using the fan to get the bolt holes aligned correctly and in it went. I used some 17/32" flat rubber faucet washers between the fan and the case to prevent any vibration.
